This machine has the various character on the basis of VNT machine.
The machine will be made to order to improve productivity, having consulted with the customer.
Due to In-line molding , rubber injection system with wide daylight , the working efficiency can be improved. As for the custom-made machine, we will take an order of the preplastication and plunger type injection molding machine.

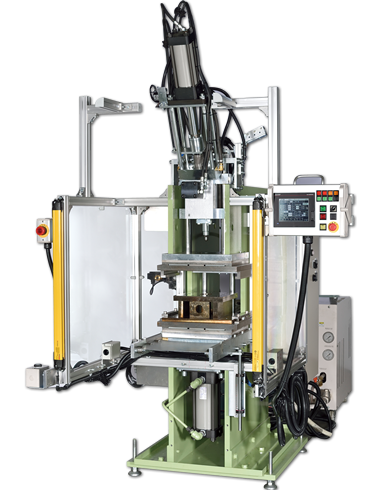

・This is the preplasticating rubber molding machine for 10t. It's possible for us to make the compact and mobile machine.
・The delivery record is already more than 1000units. It's stable performance.
・The automatic instrument which is placed in the molding machine can be manufactured according to the customer's request.
・Please ask us about the clip insert machine.
・It's possible to mold in the way of two-color molding plus insert molding.
・Stable injection due to double hydraulic circuit.
・High speed rotation by electric rotary table / Fine positioning

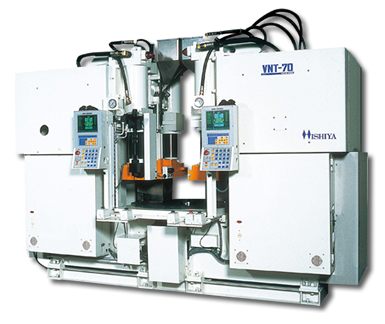

・Machine type : VNT-70RS, VNT-100RS
・Center injection system
・The height is less than 4m.
・Injection quantity by preplasticating unit :600㎤
・Clamping force : 100t
・Sideway shuttle sliding table with one cavity and two core mold
・Sideway shuttle sliding table together with no-tie bar allows a wide space for operation. Ever difficulty wired insert mold for rotary table can be efficiently operated in this machine.

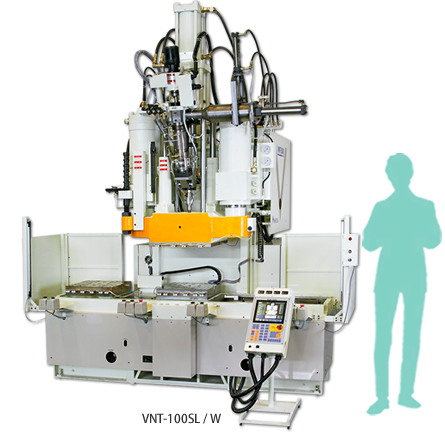

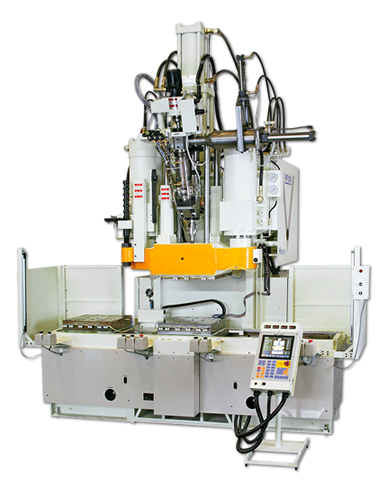

・Machine type : VNT-70SL/W, VNT-100SL/W
Not only 3 gradation of mold clamp plus low pressure, but also 5 gradation of speed and pressure control brings smoother clmping.
5 gradation of injection speed control 3 gradatiion of hold pressure control plus charging speed and back prssure of 3 gradation are controlled. ( 3 gradation of back pressure is available as an option.) High molding precision is attained.
Weekly calendar timer is equipped. By adapting PID control and SSR circuit, we promise extremely precise control.
1500 shots of molding condition data are retro-spectively able to be monitored. Highly precise quality control and observation of poor results are securely feasible.
AREA SENSOR
FALL PRVENTION LEVER
LEVEL PAD
MOLD COOLING UNIT
MOLD CLAMP
IN TAKE PIPE OF OIL COOLER
HEAT NSULATING PLATE
SPARE ELECTRICAL SOCKET
SPARE PLUG
METAL PLUG FOR INTERLOCK
SPRING TYPE BALL BEARING
